OMS 社区版问题排查手册

supervisorctl status

#checkpoint 是 unix 时间戳

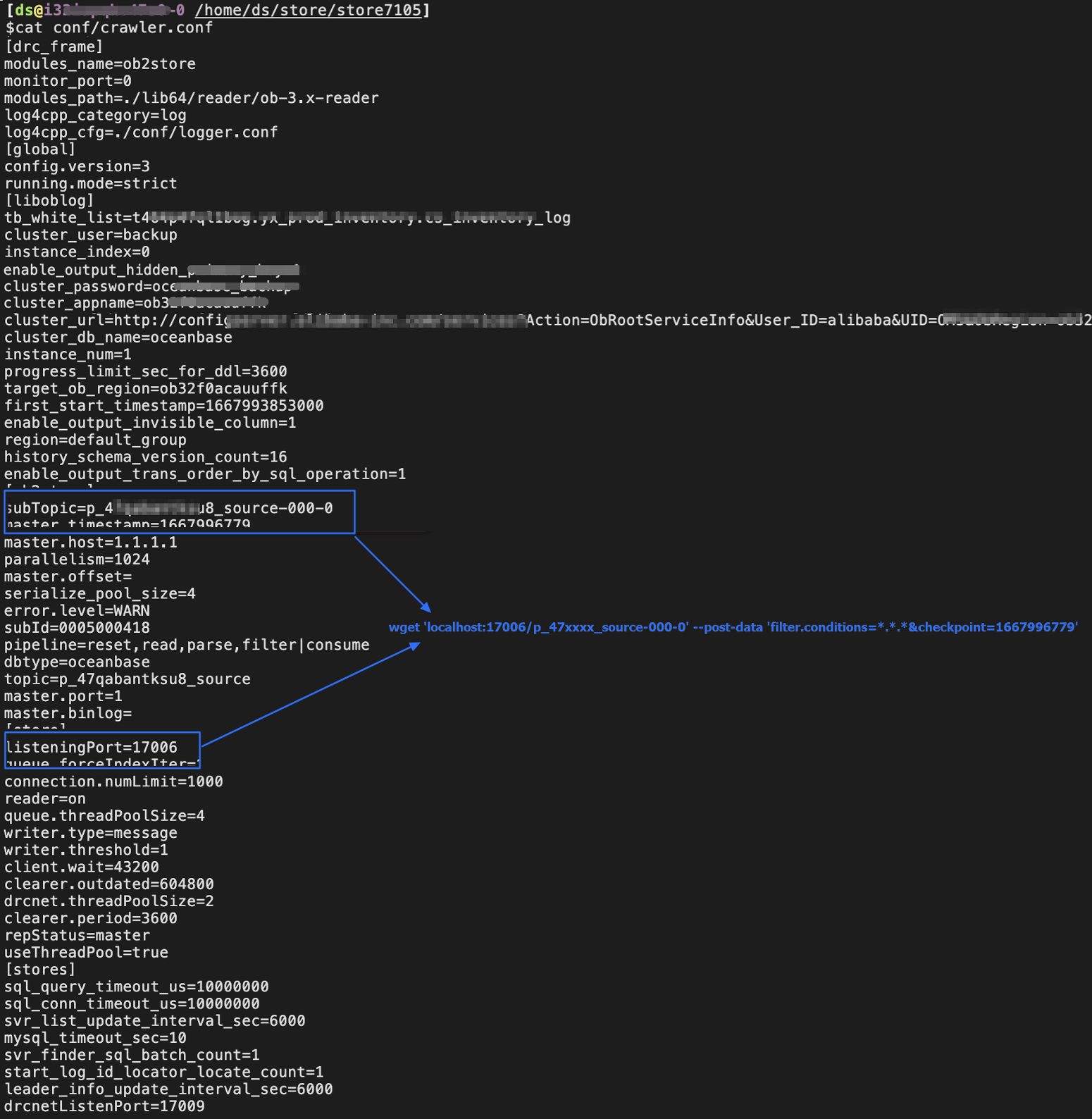

#17006 和 p_47qaxxxu8_source-000-0 看下图
#您可以根据表名、时间和字段内容定位到具体数据
wget 'localhost:17006/p_47qaxxxsu8_source-000-0' --post-data 'filter.conditions=*.*.*&checkpoint=1667996779'

--源表、主键 ID、UK 字段 uk_id
CREATE TABLE test_01(id bigint not null AUTO_INCREMENT,uk_id bigint not null,...);
CREATE TABLE test_02(id bigint not null AUTO_INCREMENT,uk_id bigint not null,...);

--目标表
CREATE TABLE test(id_new bigint not null AUTO_INCREMENT,uk_id bigint not null,...,
                 PRIMARY KEY (id_new,uk_id),
                 unique key(uk_id))
PARTITION BY HASH(uk_id)
PARTITIONS 4
;

SET TIME_ZONE='%s';
SET sql_mode='';
SET names 'utf8mb4';
SET foreign_key_checks = off;
SELECT version();
SELECT 1;
--查询所有 Schema
SELECT CATALOG_NAME, SCHEMA_NAME, DEFAULT_CHARACTER_SET_NAME, DEFAULT_COLLATION_NAME, SQL_PATH
FROM `information_schema`.`SCHEMATA`
--查询所有表
SELECT NULL,TABLE_SCHEMA,TABLE_NAME,TABLE_ROWS, TABLE_COLLATION, ENGINE
FROM information_schema.tables WHERE TABLE_TYPE='BASE TABLE' AND TABLE_SCHEMA NOT IN('mysql','information_schema','performance_schema')
--查询表的数据库引擎信息
SELECT `ENGINE` FROM `information_schema`.`tables` WHERE TABLE_SCHEMA = '%s' AND TABLE_NAME = '%s'
--查询表的字符集
SELECT TABLE_COLLATION FROM information_schema.tables WHERE TABLE_SCHEMA = '%s' AND TABLE_NAME = '%s'
--查询字段信息
SELECT `COLUMN_NAME` ,upper(`COLUMN_TYPE`) ,`CHARACTER_MAXIMUM_LENGTH` ,`NUMERIC_PRECISION`,`NUMERIC_SCALE`
FROM information_schema.columns WHERE table_schema=? AND table_name=? ORDER BY ORDINAL_POSITION ASC
--查询所有视图
SELECT TABLE_NAME, TABLE_SCHEMA, VIEW_DEFINITION FROM information_schema.views
WHERE TABLE_SCHEMA IN ('xx');
--存在记录5.7之后的
--只查询正常列，不含生成列
SELECT `COLUMN_NAME` ,upper(`COLUMN_TYPE`) ,`CHARACTER_MAXIMUM_LENGTH` ,`NUMERIC_PRECISION`,`NUMERIC_SCALE`
FROM information_schema.columns WHERE table_schema=? AND table_name=? AND (GENERATION_EXPRESSION='' or GENERATION_EXPRESSION is null) ORDER BY ORDINAL_POSITION ASC
--索引
SELECT INDEX_NAME,NON_UNIQUE,SEQ_IN_INDEX,COLUMN_NAME,SUB_PART FROM information_schema.STATISTICS WHERE table_schema=? AND table_name=?
AND concat(index_schema,'.',index_name) NOT IN (
SELECT concat(index_schema,'.',index_name) FROM information_schema.STATISTICS
WHERE table_schema=? AND table_name=? AND upper(nullable)='YES')
ORDER BY INDEX_NAME ASC, SEQ_IN_INDEX ASC
--查询分区
SELECT TABLE_SCHEMA, TABLE_NAME,PARTITION_NAME,SUBPARTITION_NAME,PARTITION_METHOD,PARTITION_EXPRESSION,SUBPARTITION_METHOD,SUBPARTITION_EXPRESSION
FROM information_schema.PARTITIONS
--查看约束情况
SELECT  REFERENCED_TABLE_SCHEMA, REFERENCED_TABLE_NAME, TABLE_SCHEMA, TABLE_NAME, CONSTRAINT_NAME,REFERENCED_COLUMN_NAME, COLUMN_NAME FROM information_schema.KEY_COLUMN_USAGE

--查询所有 Schema
SELECT CATALOG_NAME, SCHEMA_NAME, DEFAULT_CHARACTER_SET_NAME, DEFAULT_COLLATION_NAME, SQL_PATH
FROM `information_schema`.`SCHEMATA`
--查询所有表
SELECT NULL,TABLE_SCHEMA,TABLE_NAME,TABLE_ROWS, TABLE_COLLATION, ENGINE
FROM information_schema.tables WHERE TABLE_TYPE='BASE TABLE' AND TABLE_SCHEMA NOT IN('mysql','information_schema','performance_schema')
--查询表的数据库引擎信息
SELECT `ENGINE` FROM `information_schema`.`tables` WHERE TABLE_SCHEMA = '%s' AND TABLE_NAME = '%s'
--表的字符集
SELECT TABLE_COLLATION FROM information_schema.tables WHERE TABLE_SCHEMA = '%s' AND TABLE_NAME = '%s'
--字段信息
SELECT `COLUMN_NAME` ,upper(`COLUMN_TYPE`) ,`CHARACTER_MAXIMUM_LENGTH` ,`NUMERIC_PRECISION`,`NUMERIC_SCALE`
FROM information_schema.columns WHERE table_schema=? AND table_name=? ORDER BY ORDINAL_POSITION ASC
--存在记录5.7之后的
--只查询正常列，不含生成列
SELECT `COLUMN_NAME` ,upper(`COLUMN_TYPE`) ,`CHARACTER_MAXIMUM_LENGTH` ,`NUMERIC_PRECISION`,`NUMERIC_SCALE`
FROM information_schema.columns WHERE table_schema=? AND table_name=? AND (GENERATION_EXPRESSION='' or GENERATION_EXPRESSION is null) ORDER BY ORDINAL_POSITION ASC
--索引
SELECT INDEX_NAME,NON_UNIQUE,SEQ_IN_INDEX,COLUMN_NAME,SUB_PART FROM information_schema.STATISTICS WHERE table_schema=? AND table_name=?
AND concat(index_schema,'.',index_name) NOT IN (
SELECT concat(index_schema,'.',index_name) FROM information_schema.STATISTICS
WHERE table_schema=? AND table_name=? AND upper(nullable)='YES')
ORDER BY INDEX_NAME ASC, SEQ_IN_INDEX ASC
--查询分区信息
SELECT PARTITION_NAME,SUBPARTITION_NAME FROM information_schema.PARTITIONS WHERE TABLE_SCHEMA='{}' AND TABLE_NAME='{}'
--分区字段表达式
SELECT DISTINCT PARTITION_EXPRESSION,SUBPARTITION_EXPRESSION FROM information_schema.PARTITIONS WHERE TABLE_SCHEMA=? AND TABLE_NAME=?
--以下 SQL 通过宏块信息切片 __all_virtual_partition_sstable_macro_info 相关的
--查询租户信息
SELECT tenant_id FROM oceanbase.__all_tenant WHERE tenant_name = '%s'
--查询表的索引
SELECT  key_name, NON_UNIQUE,SEQ_IN_INDEX,COLUMN_NAME,`null` nullable FROM oceanbase.__tenant_virtual_table_index WHERE table_id = ?
--获取表id
--20200 之前版本
SELECT %s b.table_id FROM oceanbase.__all_database a, oceanbase.__all_table b WHERE a.database_id = b.database_id AND a.tenant_id = %d AND a.database_name = '%s' AND b.table_name = '%s'
--20200 之后版本
SELECT %s b.table_id FROM oceanbase.__all_virtual_database a, oceanbase.__all_virtual_table b WHERE a.database_id = b.database_id AND a.tenant_id = %d AND a.database_name = '%s' AND b.table_name = '%s'
--获取分区信息
--20200 之前版本
SELECT %s part_id,part_name FROM oceanbase.__all_part WHERE table_id = %d AND part_name IS NOT NULL AND part_name<>''
--20200 之后版本
SELECT %s part_id,part_name FROM oceanbase.__all_virtual_proxy_partition WHERE table_id = %d AND part_name IS NOT NULL AND part_name<>''
--获取子分区信息
SELECT %s partition_id,case when subpart_name is null then concat(part_name,'sp',subpart_id) ELSE subpart_name END subpart_name FROM oceanbase.__all_virtual_partition_item WHERE table_id = %d AND partition_level>1
--查询 tableid
SELECT table_id FROM oceanbase.gv$table WHERE database_name=? AND table_name=?
--宏块信息查询，store_type=1正常的信息，store_type=4表示转储
--20200 之前版本
SELECT %s partition_id OMS_PARTITION_ID,data_seq OMS_DATA_SEQ,macro_range OMS_MACRO_RANGE,row_count OMS_ROW_COUNT FROM oceanbase.__all_virtual_partition_sstable_macro_info
WHERE tenant_id=%d AND table_id = %d AND store_type=1 AND macro_range NOT LIKE '%%]always true' AND macro_range<>'(MIN ; MAX]' AND macro_range LIKE '%%]'
AND (svr_ip,svr_port,partition_id) IN (SELECT svr_ip, svr_port,partition_id FROM oceanbase.__all_meta_table
WHERE tenant_id=%d AND table_id = %d AND ROLE = 1)
ORDER BY partition_id,data_seq
--20200 之后版本
SELECT %s partition_id OMS_PARTITION_ID,data_seq OMS_DATA_SEQ,macro_range OMS_MACRO_RANGE,row_count OMS_ROW_COUNT FROM oceanbase.__all_virtual_partition_sstable_macro_info
WHERE tenant_id=%d AND table_id = %d AND store_type=1 AND macro_range NOT LIKE '%%]always true' AND macro_range<>'(MIN ; MAX]' AND macro_range LIKE '%%]'
AND (svr_ip,svr_port,partition_id) IN (SELECT svr_ip, svr_port,partition_id FROM oceanbase.__all_virtual_meta_table
WHERE tenant_id=%d AND table_id = %d AND ROLE = 1)
ORDER BY partition_id,data_seq
--内存防爆
SELECT /*+query_timeout(5000000)*/ total, freeze_trigger,mem_limit FROM oceanbase.gv$memstore
--CPU 防爆
SELECT min(100-round(cpu_usage.value * 100 / cpu_limit.value)) cpu_free_percent
FROM oceanbase.gv$sysstat cpu_usage, oceanbase.gv$sysstat cpu_limit
WHERE cpu_usage.name = 'cpu usage' AND cpu_limit.name = 'max cpus'
AND cpu_usage.svr_ip = cpu_limit.svr_ip
